ASR5502S Datasheet
Introduction
About This Document
This document introduces the specifications of loT Wi-Fi SoC ASR5502S.
Intended Readers
This document is mainly for engineers who use this chip to develop their own platform and products, for instance:
PCB Hardware Development Engineer
Software Engineer
Technical Support Engineer
Included Chip Models
The product models corresponding to this document are as follows.
Model |
SiP Flash |
Package |
Protocol |
Operating Modes |
---|---|---|---|---|
ASR5502S |
Yes |
QFN40, 5*5 mm |
802.11 b/g/n |
Support Station/SoftAP/Sniffer Support IoT mode/SDIO mode |
Copyright Notice
© 2023 ASR Microelectronics Co., Ltd. All rights reserved. No part of this document can be reproduced, transmitted, transcribed, stored, or translated into any languages in any form or by any means without the written permission of ASR Microelectronics Co., Ltd.
Trademark Statement
ASR and ASR Microelectronics Co., Ltd. are trademarks of ASR Microelectronics Co., Ltd.
Other trade names, trademarks and registered trademarks mentioned in this document are property of their respective owners.
Electrostatic Discharge (ESD) Warning
This product can be damaged by Electrostatic Discharge (ESD). When handling with this device, the people should be very careful to conduct the ESD protection to avoid any device damage caused by ESD event.
Disclaimer
ASR does not give any warranty of any kind and may make improvements and/or changes in this document or in the product described in this document at any time.
This document is only used as a guide, and no contents in the document constitute any form of warranty. Information in this document is subject to change without notice.
All liability, including liability for infringement of any proprietary rights caused by using the information in this document is disclaimed.
ASR Microelectronics Co., Ltd.
Address: 9F, Building 10, No. 399 Keyuan Road, Zhangjiang High-tech Park, Pudong New Area, Shanghai, 201203, China
Homepage: http://www.asrmicro.com/
Revision History
Date |
Version |
Release Notes |
---|---|---|
2023.12 |
V2.8.0 |
Added Section 5.3 and Section 5.4; Updated Section 1.3, Section 5.1 and Section 5.2. |
1. Overview
1.1 General
ASR550X family is a highly integrated, high performance and low cost 1x1 IEEE 802.11 b/g/n System-on-Chip (SoC) for the Internet of Things (IoT). ASR550X integrates RF transceiver, 802.11 PHY+MAC, ARM Cortex-M4F, advanced peripheral interfaces, Real Time Counter (RTC) and power management circuits. The integrated RF and analog circuit incorporate T/R switch, RF balun, power amplifier, low-noise amplifier, and entire power management modules. Therefore, ASR550X provides a small form-factor solution with minimal external components for the IoT applications, such as smart lighting, security, remote control, appliances and more.
With the complete and self-contained 802.11 b/g/n WLAN networking capabilities, the chip can perform either as a standalone IoT application with Supplicant/HostAP/Sniffer mode, or as a slave with SDIO interface.
Solution Highlights:
Fully Integrated Power Management Circuits
The chip includes an on-chip DCDC associated with LDOs to provide noise isolated power supplies for digital and analog modules. The DCDC has a single, wide-range (3.3~5 V) supply input and dual outputs (1.2 V, 1.8 V) to extremely minimize Bill of Material (BoM). Moreover, the chip provides two UART interfaces that can follow the DCDC supply to adjust interface voltage range from 3.3 V to 5V.
Entire Security System
A completed security infrastructure, including AES/RSA/ECC crypto engine, hash engine and True Random Generator (TRNG), is also integrated. ASR550X can provide a comprehensive security solution as Security Boot flow, Flash Image Protection and dynamic encryption/decryption for customer data.
Entire Software Solution
ASR550X provides an entire software solution, such as RTOS/TCPIP/SSL/MQTT/Wi-Fi/AT and more. The customer just needs to simply develop applications then go to market.
In pass through application scenario, the customer needs no any code developing in ASR550X, but controls ASR550X with AT command through UART interface. In master-control application scenario, the customer just needs to focus on their own application developing, with the OS/ communication layer/ Security already supported in ASR550X SDK, and easily calling the 550X’s API.
1.2 Part Number Information
The following table gives ASR550X part number information (Note that the number is a temporary version).
Part Number |
Pin Number |
Package Size (mm x mm) |
Flash SiP |
DIG_PAD0~3 DVDD IO Voltage |
Descriptions |
---|---|---|---|---|---|
ASR5502S |
40 |
5x5 |
Yes |
Follow VBAT Supply |
DIG_PAD0~3 DVDD IO voltage follows VBAT supply |
1.3 Features
Power Management Unit (PMU)
Integrated DCDC and LDO, no need of off-chip PMU device
Support single supply input, range from 3.3 V ~ 5 V
IEEE 802.11 Features
Integrated Power Amplifier (PA) with internal power detector and closed loop power calibration
Integrated T/R switch and RF balun, no need of off-chip matching network
Support 802.11 b/g/n compatible WLAN
Support 802.11e QoS enhancement (WMM)
Support 802.11i (WPA/WPA2 PSK), Open/WEP/TKIP/CCMP
Support power saving mechanism
SoC Features
ARM Cortex-M4F associated with 16 KB instruction cache
256 KB RAM Configurable for Instruction and Data
24 KB Boot ROM is integrated
4K-bit OTP is integrated
MCU Core Clock: 240 MHz
XTAL Clock: 26/40 MHz
Low-Power Clock: XO 32.768 KHz Clock, RC 32.768 KHz Clock
Support eXecute-in-Place (XiP) on flash and external SPI flash
External SPI NOR Flash is supported up to 128 MB
Support Category: Winbond, MXIC, XTX and GigaDevice
Support OTA
Security
CryptoCell 310 Security Engine
AES/RSA/ECC/MAC/HMAC/SHA1/SHA-224/SHA256/SHA512/D-H library
True Random Number Generator (TRNG)/PRNG
Flash Image Integrated Encryption/Decryption
Dynamic Encryption/Decryption for Customer Data
Integrated eFuse OTP
Peripherals
UART/SPI/ I2C/PWM/Timer
SDIO
Generic AUXADC x8 Channels
Watchdog
RTC

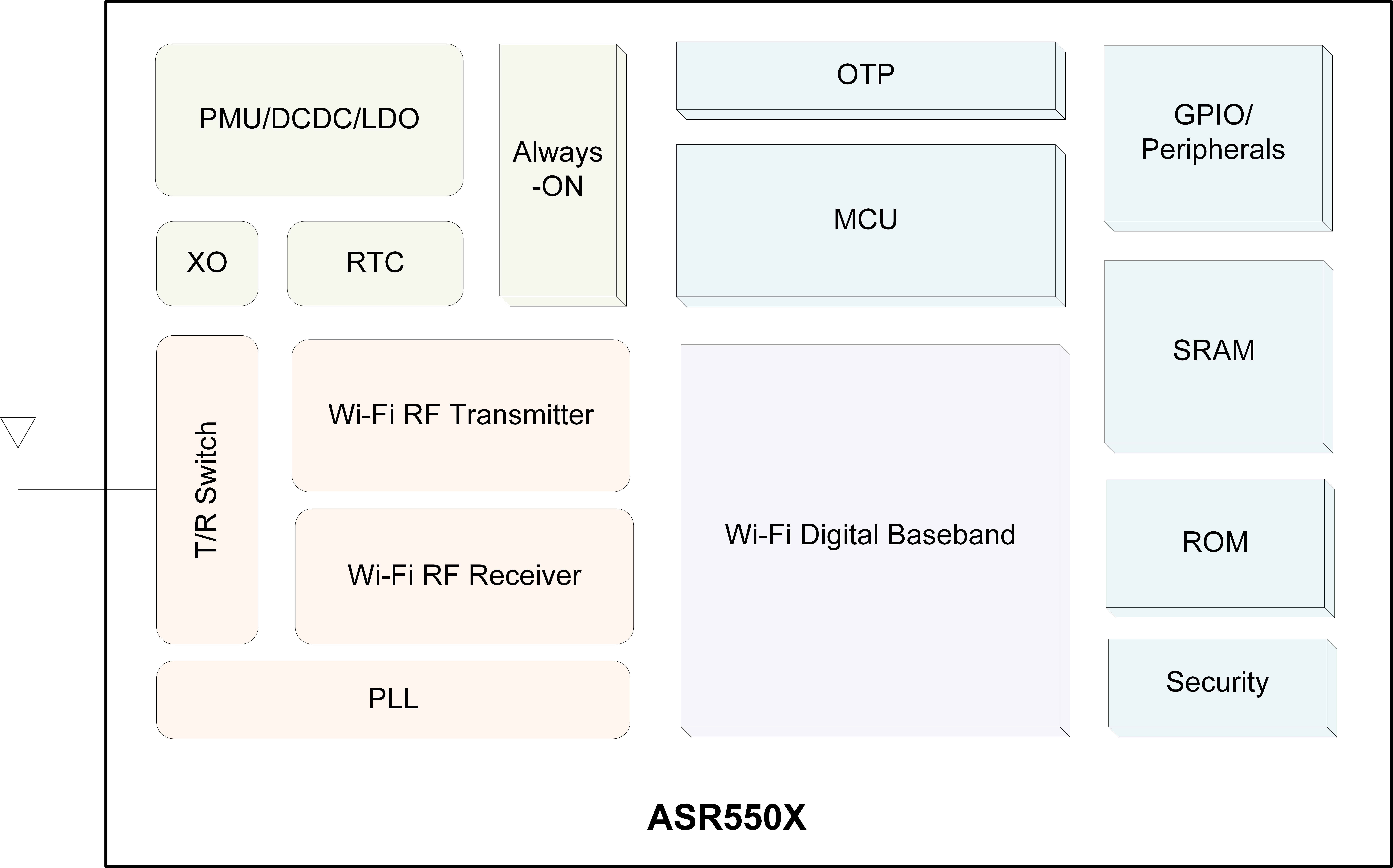

1.4 Block Diagram
1.5 Applications
Smart Plugs and Lights
Wearable Electronics
Home Appliances
Home Automation
802.11 WLAN Location-aware Devices
Security ID Tags
802.11 WLAN Position System Beacons
Mesh Network
Industrial Wireless Control
Sensor Networks
2. System Function Description
2.1 PMU
ASR550X can support 3.3 V ~ 5 V single power supply, which can come from a battery or a DC-DC convertor or an AC-DC convertor directly. There is no need of any other off-chip DCDC or LDO device. The PMU consists of Always-ON (AON) control logic, RTC circuits, DCDC, and LDOs. All these circuits have characters of low noise and low quiescent current performances.
DCDC is powered by single power supply and it generates two BUCK voltages of 1.2 V and 1.8 V. 1.2 V BUCK is supply for Digital LDO (DLDO). 1.8 V BUCK is supply for all Analog LDOs (ALDO). The LDO33 has 3.3 V output that provide supply for DVDD IO, RTC LDO (RLDO) and 3.3 V analog circuits.
ASR550X’s PMU provides several low power modes: modem sleep, light sleep, and deep sleep. These modes meet the different application requirements.
2.2 Clock
ASR550X supports 26M or 40M XO frequency to generate all high performance clock signals in on-chip RF/Analog PLL. In RTC, circuits support two low power clock sources, the single-ended input 32.768KHz XO and the RC Oscillator (RCO). The customer can use RCO as RTC reference clock to save the BoM. The RCO frequency can be auto-calibrated on-chip.
2.3 CPU Functions
2.3.1 Introduction
ASR550X includes an integrated ARM Cortex™-M4 processor with internal RAM and ROM. The high-performance ARM Cortex-M4 processor provides a low-cost platform that meets the needs of minimal memory implementation, reduced pin count, and low power consumption, while delivering outstanding computational performance and exceptional system response to interrupts. The Cortex-M4 includes optional floating point arithmetic functionality.
2.3.2 Features
The inside ARM Cortex-M4 core has Floating Point Unit (FPU) and Memory Protection Unit (MPU) and with the following features:
A 32-bit ARM Cortex Thumb® instruction set optimized for embedded applications
A Nested Vectored Interrupt Controller (NVIC) closely integrated with the processor core to achieve low latency interrupt processing.
A low-cost debug solution featuring with serial wire debug port (SW-DP) or serial wire JTAG debug port (SWJ-DP) debug access
Multiple high-performance bus interfaces.
2.4 Memory
2.4.1 ROM
The internal 24 KB ROM of ASR550X device is at address 0x0000_0000 of the device memory. It stored the boot rom image, mainly used to program the flash image/take secure boot function/take non-secure boot function according to the Mode Selection.
2.4.2 SRAM
ASR550X family provides up to 256 KB of on-chip SRAM. The internal RAM is not only used for code and data memory, but also used for shared memory for Wi-Fi packet buffer. It can be configured by software remap register. Internal RAM is capable of selective retention during power save mode. This internal SRAM is located at offset 0x0800_0000 of the device memory map.
2.4.3 FLASH
ASR5502S provides 2 MB of System-in-Package (SiP) QSPI Flash and supports up to external 128 MB QSPI flash devices with hardware encryption and flash remapping functions to protect developers’ programs and data.
The Cortex-M4 processor can access the QSPI flash through high-speed caches.
2.4.4 One-Time Programmable Memory
ASR550X family provides 4K-bit One-Time Programmable (OTP) memory.
Hardware configuration parameters including Flash-Encryption may be stored in first internal 2Kbit OTP memory, which is read by system software after device reset. In addition, customer-specific parameters can be stored, depending on the specific board design in reserved 2Kbit OTP memory.
2.4.5 Memory Mapping
The following table describes the various MCU peripherals and how they are mapped to the processor memory.
Description |
Start Address |
End Address |
---|---|---|
ROM |
0x0000_0000 |
0x0000_5FFF |
SRAM |
0x0800_0000 |
0x0803_FFFF |
FLASH |
0x1000_0000 |
0x17FF_FFFF |
SYS_CON |
0x4000_0000 |
0x4000_0FFF |
GPIO0 |
0x4000_1000 |
0x4000_1FFF |
GPIO1 |
0x4000_2000 |
0x4000_2FFF |
QSPI_CFG |
0x4000_3000 |
0x4000_3FFF |
DMA_CFG |
0x4000_4000 |
0x4000_4FFF |
OTP |
0x4000_5000 |
0x4000_5FFF |
SEC_FLASH_CTRL_CFG |
0x4000_6000 |
0x4000_6FFF |
SDIO |
0x4000_7000 |
0x4000_7FFF |
RETENTION_MST |
0x4000_8000 |
0x4000_8FFF |
WDT |
0x4001_0000 |
0x4001_FFFF |
UART0 |
0x4001_1000 |
0x4001_1FFF |
UART1 |
0x4001_2000 |
0x4001_2FFF |
UART2 |
0x4001_3000 |
0x4001_3FFF |
SPI0 |
0x4001_4000 |
0x4001_4FFF |
SPI1 |
0x4001_5000 |
0x4001_5FFF |
SPI2 |
0x4001_6000 |
0x4001_6FFF |
TIMER |
0x4001_7000 |
0x4001_7FFF |
PWM |
0x4001_8000 |
0x4001_8FFF |
ADC |
0x4001_9000 |
0x4001_9FFF |
I2C0 |
0x4001_A000 |
0x4001_AFFF |
I2C1 |
0x4001_B000 |
0x4001_BFFF |
CACHE_CFG |
0x4001_C000 |
0x4001_CFFF |
CYPT310_CFG |
0x4001_D000 |
0x4001_DFFF |
Share mem |
0x6000_0000 |
0x607F_FFFF |
MAC/PHY |
0x6080_0000 |
0x61FF_FFFF |
2.5 Peripherals
The following table gives a summary of all peripherals of ASR5502S.
2.5.1 PIN MUX
All GPIO can be reconfigured via software control. The PIN MUX table is shown as follows:
Num. |
Pin Name |
GPIO Func=0 |
GPIO Func=1 |
GPIO Func=2 |
GPIO Func=3 |
GPIO Func=4 |
---|---|---|---|---|---|---|
1 |
DIG_PAD0 |
GPIO0 |
UART0_TXD |
SWC |
SPI1_CSN |
PWM5 |
2 |
DIG_PAD1 |
GPIO1 |
UART0_RXD |
SWD |
SPI1_SCK |
PWM7 |
3 |
DIG_PAD2 |
GPIO2 |
UART1_TXD |
UART1_TXD |
SPI1_MISO |
I2C0_SCL |
4 |
DIG_PAD3 |
GPIO3 |
UART1_RXD |
SDIO_INT |
SPI1_MOSI |
I2C0_SDA |
5 |
DIG_PAD4 |
SWC |
GPIO4 |
SDIO_CMD |
UART0_TXD |
PWM0 |
6 |
DIG_PAD5 |
SWD |
GPIO5 |
SDIO_CLK |
UART0_RXD |
PWM2 |
7 |
DIG_PAD6 |
GPIO6 |
SPI0_CSN |
SDIO_DATA0 |
UART0_CTS |
PWM4 |
8 |
DIG_PAD7 |
GPIO7 |
SPI0_SCK |
SDIO_DATA1 |
UART0_RTS |
PWM6 |
9 |
DIG_PAD8 |
GPIO8 |
SPI0_MOSI |
SDIO_DATA2 |
I2C1_SCL |
UART1_TXD |
10 |
DIG_PAD9 |
GPIO9 |
SPI0_MISO |
SDIO_DATA3 |
I2C1_SDA |
UART1_RXD |
11 |
DIG_PAD10 |
MODE_SEL3 |
PWM1 |
GPIO10 |
UART2_CTS |
SPI2_SCK |
12 |
DIG_PAD11 |
GPIO11 |
PWM3 |
SDIO_INT |
UART2_RTS |
SPI2_MOSI |
13 |
DIG_PAD12 |
GPIO12 |
GPIO12 |
SPI2_CSN |
UART2_TXD |
GPIO12 |
14 |
DIG_PAD13 |
GPIO13 |
GPIO13 |
SPI2_MISO |
UART2_RXD |
GPIO13 |
15 |
DIG_PAD14 |
STRAP/SEL1 |
PWM0 |
SPI2_SCK |
UART1_CTS |
GPIO14 |
16 |
DIG_PAD15 |
STRAP/SEL2 |
PWM2 |
SPI2_MOSI |
UART1_RTS |
GPIO15 |
2.5.2 PWM
Pulse Width Modulation (PWM) is to generate pulse sequences with programmable frequency and duty cycle for LCD, Vibrators and other devices. The PWM provides eight PWM channels and four of them can be configured as input capture function.
Features:
8 PWM generators with 16-bit counter
Prescaler divider by 1/2/4/8/16/32/64/128
Up or up/down mode for PWM output
Dead-band generator, and it can be bypassed
16-bit input capture (edge/time) mode
16-bit timer mode
2.5.3 SPI
ASR550X supports four-wire and full-duplex Motorola Serial Peripheral Interface (SPI) protocol. There are three SPI, two of them are master and the other one is slave. They support two options of clock polarity (CPOL) and clock phase (CPHA).
Features:
Support normal Motorola SPI mode at the clock range of 0~10 MHz in master mode
The maximum sck_in is 6.6(4.3) MHz when both transmit and receive in slave mode
The frame format is configurable by different CPOL and CPHA
Configurable frame size by 4~32 bits
TX/RX FIFO are independent and the max depth is 32 Bytes
Programmable delay on the sample time of the rxd signal, and max delay is 8 sclk cycles, only in master mode
The slave select signal will be toggled between frames when CPHA=0
Support DMA mode
2.5.4 UART
ASR550X provides three Universal Asynchronous Receiver Transmitter (UART) controllers. Two of them with auto-flow control are used for communication with external devices and the other one is for debug.
Features:
TX/RX FIFO depth is 16 Bytes
Support auto flow control mode
Programmable frame properties, such as number of data bits per frame (5~8), optional parity bit (odd/even), number of stop bits (1,1.5,2)
Include additional FIFO status registers and shadow registers, that can be accessed by software
Loopback mode for test
Support DMA mode
2.5.5 I2C
The Inter-Integrated Circuits (I2C) bus is two wires, serial data (SDA) and serial clock (SCL). It carries information between the devices connected to the bus. Each device is recognized by a unique address and can operate as either a transmitter or receiver, depending on the function of the device.
Features:
Support SS mode (100 KHz), FS mode (400 KHz), FS mode plus (1 MHz), and HS mode (2 MHz)
Support master or slave I2C operation
Support 7-bit/10-bit addressing
TX/RX FIFO depth is 32 Bytes
Support clock stretch when TX FIFO is empty or RX FIFO is full
Support DMA mode
2.5.6 DMAC
Direct Memory Access (DMA) is used to provide high-speed data transfer between peripherals and memory, and between memory and memory, without CPU’s operations. It provides two DMA channels and sixteen handshakes with peripheral.
Features:
Two Advanced High Performance Bus (AHB) masters, one is to access memory and the other is to access peripheral
Two DMA channels
Sixteen handshakes with peripherals
Allow the AHB slave interface to return an error response when an illegal access is attempted
Maximum block size in source transfer widths is 4095
Programmable channel x’s source transfer and destination transfer width
FIFO depth is 8 bytes for each channel
Support multi-block DMA transfers on each channel
Support LLP mode
2.5.7 SDIO
Secure Digital Input and Output (SDIO) block is designed to be a SDIO slave device to work with SDIO host for bi-directional data transfer. All command should be issued by host device. It has an AHB master interface connect to memory controller, while has an AHB slave interface connect to Advanced eXtensible Interface (AXI) fabric for CPU access.
Features:
Support SDIO 2.0 specification
Support 1-bit, 4-bit SDIO transfer mode at the clock range of 0~40 MHz
Configurable clock edge for sampling and driving
Configurable block size from 1 to 512 Bytes (in multiples of 4)
Supply card to host interrupt by GPIO
Support multi-ports DMA mode
Support aggregation DMA mode
2.5.8 GPIO
General purpose Input / Output (GPIO) pins are fully configurable. They are multiplexed with other interfaces, such as I2C, SPI, UART and etc. The GPIO pins support the below features:
Input mode: the input value can be read through register.
Output mode: the output value can be set through register.
Interrupt: the input can be set to edge-trigger or level-trigger to generate CPU interrupt. Support 4 types of trigger: Low level, high level, falling edge and rising edge.
Internal pull-up or pull-down configurable
2.5.9 TIMER and WatchDog
ASR550X provides 2 independent HW timer (besides, PWM block provides 4 timers, RTC block provides 1 real-time timer and 1 low-power timer). Each Timer integrates 32-bit or 16-bit counter (software configured). Each Timer support the below modes:
Free-running mode: it is the default mode, the counter counts from max value (0xFFFF of 16bit mode or 0xFFFFFFFF of 32bit mode) to 0, then continue from max value to 0, when it counts to 0, an interrupt is generated to CPU.
Periodic timer mode: the counter counts from software configured value to 0, then continue from the setting value to 0, when it counts to 0, an interrupt is generated to CPU.
One-shot timer mode: the counter counts from the software configured value to 0, then stop counting and generate an interrupt to CPU.
The Watch Dog Timer is used to resume the controller operation when it had been disturbed by malfunctions such as noise and system errors. It can generate a general reset or an interrupt request.
2.5.10 CRYPTO ENGINE
Crypto Engine block is an integrated security core and provides a comprehensive security infrastructure that enables system wide protection that includes use cases inside and outside the device.
Function features are shown in below table.
3. Wi-Fi Subsystem Descriptions
ASR550X supports features specified in the IEEE 802.11 base standard, and amended by IEEE 802.11n.
3.1 Wi-Fi MAC
ASR550X WLAN Media Access Control (MAC) is designed to support high throughput operation with low power consumption.
Transmission and reception of aggregated MPDUs (A-MPDU)
Support for power management schemes, including WMM power-save
Support for immediate ACK and Block-ACK policies
Interframe space timing support, including RIFS
Support for RTS/CTS and CTS-to-self frame sequences for protecting frame exchanges
Back-off counters in hardware for supporting multiple priorities as specified in the WMM specification
Timing synchronization function (TSF), network allocation vector (NAV) maintenance, and target beacon transmission time (TBTT) generation in hardware
Hardware off-load for AES-CCMP, legacy WPA TKIP, legacy WEP ciphers, WAPI, and support for key management
Statistics counters for MIB support
802.11 e: QoS for wireless multimedia technology
Monitor mode: sniff all frames from the medium
3.2 Wi-Fi PHY
ASR550X WLAN Digital Port Physical Layer (PHY) is designed to comply with IEEE 802.11 b/g/n single stream to provide wireless LAN connectivity or low-power applications.
Supports IEEE 802.11b, 11g, 11n single-stream standards
Supports 802.11n MCS0-7 in both 20 MHz and 40 MHz bandwidth
Supports Optional Greenfield mode in Tx and Rx
Algorithms achieve low power, enhanced sensitivity, range and reliability
Automatic gain control scheme for blocking and non-blocking application scenario.
3.3 Wi-Fi RF
ASR550X integrates fully 802.11 b/g/n RF transceiver, including T/R switch, matching network, PA, Low Noise Amplifier (LNA), and RF synthesizer. There is no need of off-chip matching network, which saves the BoM and module Print Circuit Board (PCB) size.
The transceiver has auto-calibration and sensor circuits to guarantee the RF performance in mass production. These calibrations include transmit power, IQ imbalance, LO leakage, DC offset, filter bandwidth and etc. The temperature sensor and process sensor are also integrated on-chip.
The following table shows Wi-Fi RF TX and RX specification respectively.

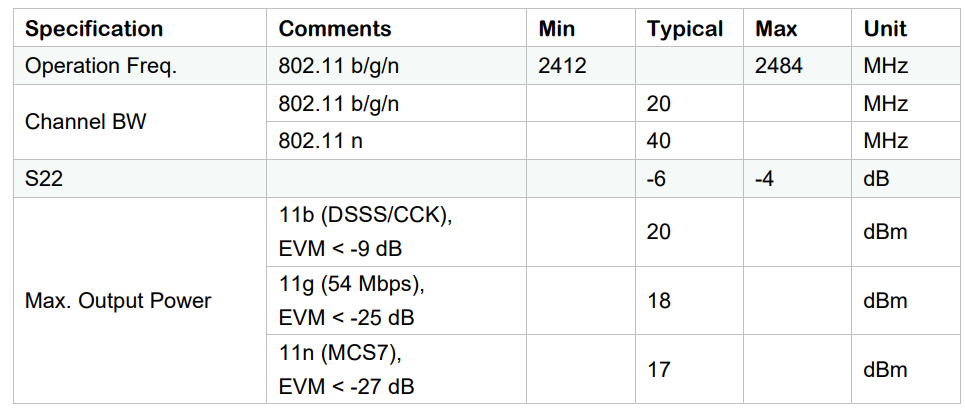

Wi-Fi TX Specification

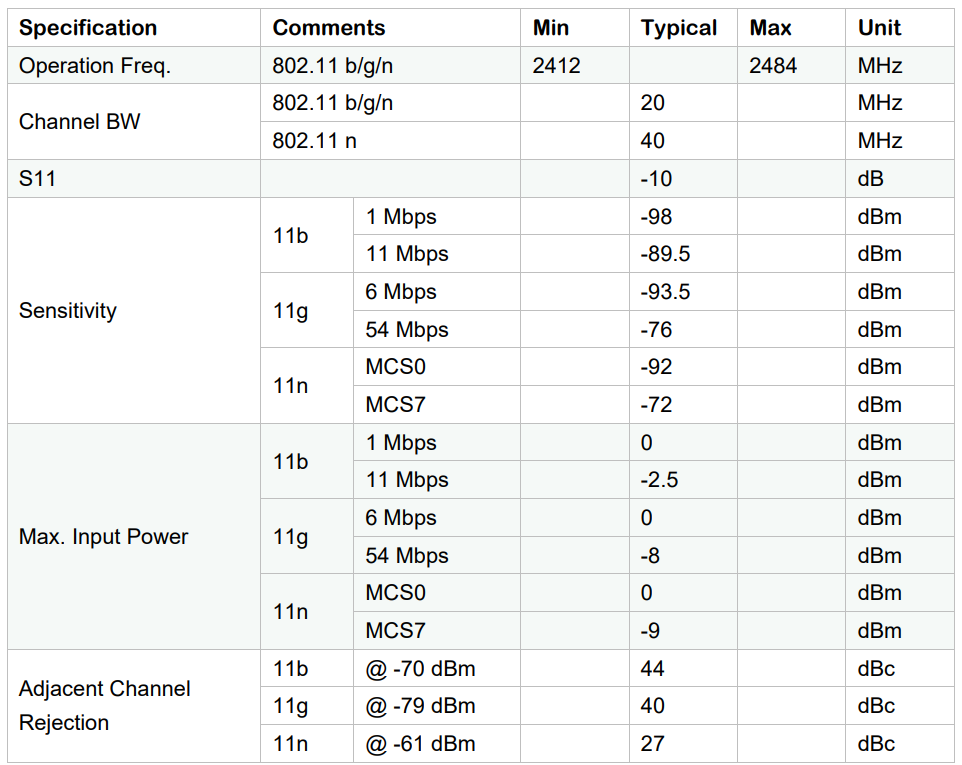

Wi-Fi RX Specification
4. Software Descriptions
ASR550X software supports two modes: XiP mode and SDIO mode.
4.1 XiP Mode
The XiP mode is mainly used in IOT scenario, the SoC can used as master control module as well as transfer module, supporting multi-functions, such as security, RTOS, TCPIP stack, Wi-Fi, AT, peripherals drivers, OTA etc.
Under the XIP mode, the image mainly runs in Flash, can effectively reduce the SRAM consuming and support the larger image.
The software architecture is as below:
4.2 SDIO mode
The SDIO mode is mainly used as High Speed Wi-Fi Device, provide higher throughput compared with XiP mode.
Under the SDIO mode, the Wi-Fi chip will connect with Application Process chip with SDIO interface, the firmware images all run in SRAM, can effectively meet the high speed requirement. The Software Architecture is as below:
5. Electrical Characteristics
5.1 Absolute Maximum Rating
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
---|---|---|---|---|---|
Power supply |
VBAT_DCDC |
-0.3 |
5.8 |
V |
|
Storage temperature range |
TSTR |
-55 |
150 |
°C |
|
Operating temperature range (Industrial Grade) |
TOPR |
-40 |
85 |
°C |
5.2 Recommended Operating Conditions
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
---|---|---|---|---|---|
Power supply |
VBAT_DCDC |
3 |
3.6/5 |
5.2 |
V |
Operating temperature range (Industrial Grade) |
TOPR |
-40 |
85 |
°C |
5.1 Absolute Maximum Rating
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
---|---|---|---|---|---|
Power supply |
VBAT_DCDC |
-0.3 |
5.8 |
V |
|
Storage temperature range |
TSTR |
-40 |
125 |
°C |
|
Operating temperature range |
TOPR |
-40 |
85 |
°C |
5.2 Recommended Operating Conditions
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
---|---|---|---|---|---|
Power supply |
VBAT_DCDC |
3 |
3.6 or 5 |
5.2 |
V |
Operating temperature range |
TOPR |
-40 |
85 |
°C |
5.3 ESD Ratings
5.4 Crystal Specifications
Parameter |
Min. |
Typ. |
Max. |
Unit |
---|---|---|---|---|
Fundamental frequency |
26 |
MHz |
||
Frequency tolerance |
-10 |
10 |
ppm |
|
Operating temperature |
-30 |
85 |
°C |
|
Load capacitor |
7.5 |
pF |
||
Maximum ESR |
50 |
Ω |
||
Aging per year |
-3 |
3 |
ppm |
6. Package Specifications
6.1 QFN40 Mechanical Parameters
ASR5502S uses 5 mm x 5 mm QFN package of 40 pin with 0.4 mm pitch.
6.2 QFN40 Pin Assignment and Description
The chip top view and pin descriptions of ASR5502S are shown as follows.
ASR5502S Pin Descriptions
Num. |
Name |
Pin Description |
I/O |
---|---|---|---|
Power, Clock |
|||
33 |
VDD11_AON |
1.1V digital always-on supply |
Power |
28 |
VDD11_CORE |
1.1V digital core domain supply |
Power |
35 |
AVDD12_DIGLDO |
1.2V digital core LDO supply |
Power |
1 |
AVDD18_ANA1 |
1.8V analog supply |
Power |
36 |
AVDD18_ANA2 |
1.8V analog supply |
Power |
37 |
AVDD18_ANA3 |
1.8V analog supply |
Power |
40 |
AVDD18_ANA4 |
1.8V analog supply |
Power |
3 |
AVDD33_ANA1 |
3.3V analog supply |
Power |
4 |
AVDD33_ANA2 |
3.3V analog supply |
Power |
34 |
AVDD33_RTC |
3.3V RTC domain supply |
Power |
9 |
DVDD33_CORE0 |
3.3V digital IO supply |
Power |
25 |
DVDD33_CORE1 |
3.3V digital IO supply |
Power |
38 |
XO26M_P1 |
26MHz clock input |
Analog |
39 |
XO26M_P2 |
26MHz clock input |
Analog |
DCDC, LDO |
|||
18 |
RVDD33_LDO |
3.3V LDO output |
Analog |
19 |
VBAT_DCDC |
3.3~5V DCDC/LDO supply |
Power |
20 |
VX_BUCK |
DCDC signal |
Analog |
21 |
VB_DCDC |
DCDC signal |
Analog |
22 |
VBUCK18 |
1.8V DCDC buck output |
Analog |
23 |
VBUCK12 |
1.2V DCDC buck output |
Analog |
24 |
AVSS_DCDC |
DCDC ground |
Power |
GPIO, Reset, Select |
|||
5 |
DIG_PAD0 |
GPIO |
Digital |
6 |
DIG_PAD1 |
GPIO |
Digital |
11 |
DIG_PAD2 |
GPIO |
Digital |
10 |
DIG_PAD3 |
GPIO |
Digital |
12 |
DIG_PAD4 |
GPIO |
Digital |
13 |
DIG_PAD5 |
GPIO |
Digital |
14 |
DIG_PAD6 |
GPIO |
Digital |
15 |
DIG_PAD7 |
GPIO |
Digital |
16 |
DIG_PAD8 |
GPIO |
Digital |
17 |
DIG_PAD9 |
GPIO |
Digital |
7 |
DIG_PAD10 |
GPIO |
Digital |
8 |
DIG_PAD11 |
GPIO |
Digital |
30 |
DIG_PAD12 |
GPIO |
Digital |
29 |
DIG_PAD13 |
GPIO |
Digital |
27 |
DIG_PAD14 |
GPIO |
Digital |
26 |
DIG_PAD15 |
GPIO |
Digital |
31 |
PAD_SEL |
Mode select |
Digital |
32 |
PAD_RSTN |
Reset |
Digital |
RF Interface |
|||
2 |
RF_INOUT |
Wi-Fi RF input/output |
Analog |
7. Reference Application Circuits
Take ASR5502S as an example, the reference PCB design is shown in following diagram.
The chip is powered by single supply input “VCC” with range from 3.3~5 V. The inside PMU can generate 1.2/1.8 V voltage for the core function circuits, and 3.3 V for the digital IO. It should be noted that 3.3 V voltage is generated for DIG_PAD_12/13 and PAD_RSTN/PAD_SEL IO pins by default. There is no need of other PMU IC, but just total 9 passive LC devices.
