ASR560X Series Reference Design
1. ASR560X QFN48 Reference Design

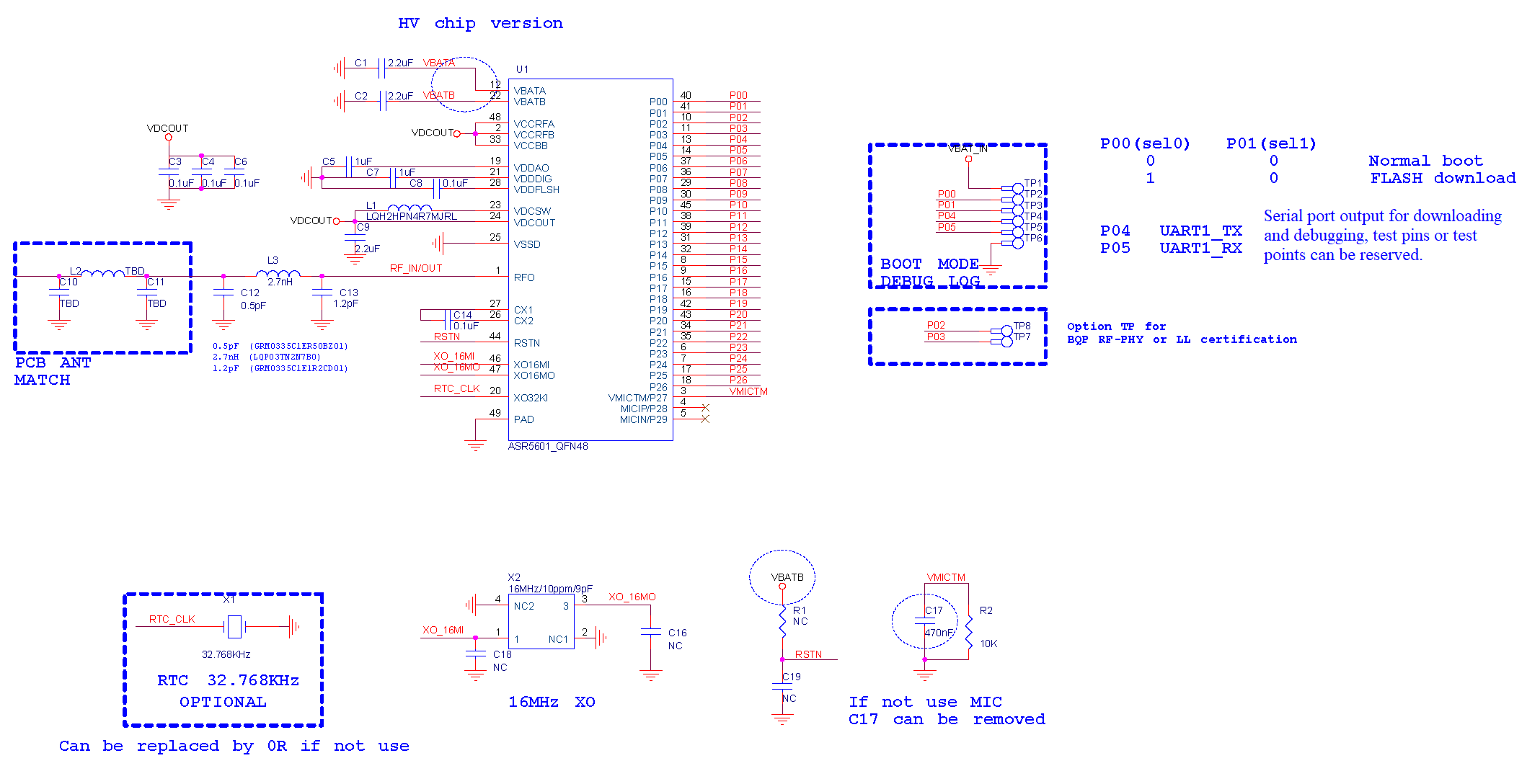

ASR560X QFN48 HV Reference Design (click to enlarge)
ASR560X QFN48 LV Reference Design (click to enlarge)
2. ASR560X QFN48 Reference BOM
ASR560X QFN48 HV Reference BOM
Number |
Qty. |
Ref Des |
Value/Model |
Description |
|---|---|---|---|---|
1 |
3 |
C1, C2, C9 |
2.2uF |
Filter Capacitor |
2 |
5 |
C3, C4, C6, C8, C14 |
0.1uF |
Filter Capacitor |
3 |
2 |
C5, C7 |
1uF |
Filter Capacitor |
4 |
1 |
C12 |
0.5pF (GRM0335C1ER50BZ01) |
Matching Capacitor |
5 |
1 |
C13 |
1.2pF (GRM0335C1E1R2CD01) |
Matching Capacitor |
6 |
1 |
C17 |
470nF |
Filter Capacitor |
7 |
1 |
L1 |
LQH2HPN4R7MJRL |
DCDC Inductor (current＞100mA) |
8 |
1 |
L3 |
2.7nH (LQP03TN2N7B0) |
Matching Inductor |
9 |
1 |
R2 |
10K |
Resistor |
10 |
1 |
U1 |
ASR5601_QFN48 |
BLE SoC |
11 |
1 |
X1 |
32.768KHz |
Crystal |
12 |
1 |
X2 |
16MHz/10ppm/9pF |
Crystal |
ASR560X QFN48 LV Reference BOM
Number |
Qty. |
Ref Des |
Value/Model |
Description |
|---|---|---|---|---|
1 |
3 |
C1, C2, C9 |
2.2uF |
Filter Capacitor |
2 |
5 |
C3, C4, C6, C8, C14 |
0.1uF |
Filter Capacitor |
3 |
2 |
C5, C7 |
1uF |
Filter Capacitor |
4 |
1 |
C12 |
0.5pF (GRM0335C1ER50BZ01) |
Matching Capacitor |
5 |
1 |
C13 |
1.2pF (GRM0335C1E1R2CD01) |
Matching Capacitor |
6 |
1 |
C17 |
470nF |
Filter Capacitor |
7 |
1 |
L1 |
LQH2HPN4R7MJRL |
DCDC Inductor (current＞100mA) |
8 |
1 |
L3 |
2.7nH (LQP03TN2N7B0) |
Matching Inductor |
9 |
1 |
R2 |
10K |
Resistor |
10 |
1 |
U1 |
ASR5601_QFN48 |
BLE SoC |
11 |
1 |
X1 |
32.768KHz |
Crystal |
12 |
1 |
X2 |
16MHz/10ppm/9pF |
Crystal |
3. ASR560X QFN32 Reference Design
ASR560X QFN32 HV Reference Design (click to enlarge)
ASR560X QFN32 LV Reference Design (click to enlarge)
4. ASR560X QFN32 Reference BOM
ASR560X QFN32 HV Reference BOM
Number |
Qty. |
Ref Des |
Value/Model |
Description |
|---|---|---|---|---|
1 |
3 |
C1, C4, C11 |
2.2uF |
Filter Capacitor |
2 |
5 |
C2, C6, C7, C10, C16 |
0.1uF |
Filter Capacitor |
3 |
2 |
C8, C9 |
1uF |
Filter Capacitor |
4 |
1 |
C14 |
0.5pF (GRM15555C1HR50BA01) |
Matching Capacitor |
5 |
1 |
C15 |
1.2pF (GRM15555C1H1R2BA01) |
Matching Capacitor |
6 |
1 |
C16 |
470nF |
Filter Capacitor |
7 |
1 |
L1 |
LQH2HPN4R7MJRL |
DCDC Inductor (current＞100mA) |
8 |
1 |
L3 |
1.8nH (LQG15HS1N8B02) |
Matching Inductor |
9 |
1 |
R7 |
10K |
Resistor |
10 |
1 |
U1 |
ASR5601 |
BLE SoC |
11 |
1 |
X1 |
16MHz/10ppm/9pF |
Crystal |
12 |
1 |
X2 |
32.768KHz |
Crystal |
ASR560X QFN32 LV Reference BOM
Number |
Qty. |
Ref Des |
Value/Model |
Description |
|---|---|---|---|---|
1 |
3 |
C1, C4, C11 |
2.2uF |
Filter Capacitor |
2 |
5 |
C2, C6, C7, C10, C16 |
0.1uF |
Filter Capacitor |
3 |
2 |
C8, C9 |
1uF |
Filter Capacitor |
4 |
1 |
C14 |
0.5pF (GRM15555C1HR50BA01) |
Matching Capacitor |
5 |
1 |
C15 |
1.2pF (GRM15555C1H1R2BA01) |
Matching Capacitor |
6 |
1 |
C16 |
470nF |
Filter Capacitor |
7 |
1 |
L1 |
LQH2HPN4R7MJRL |
DCDC Inductor (current＞100mA) |
8 |
1 |
L3 |
1.8nH (LQG15HS1N8B02) |
Matching Inductor |
9 |
1 |
R7 |
10K |
Resistor |
10 |
1 |
U1 |
ASR5601 |
BLE SoC |
11 |
1 |
X1 |
16MHz/10ppm/9pF |
Crystal |
12 |
1 |
X2 |
32.768KHz |
Crystal |
